Gear Blank Forging
>
|
| Place of Origin | Jiangsu China |
| Brand Name | Guangda |
| Certification | DNV, BV, Rina, ISO, GL, ABS, LR ,CCS ,PED |
Forged Planetary Gear Blanks For Wind Turbine Gear Box High Purity 18CrNiMo7-6,17CrNiMo6
Generally, planetary gears are used as speed reducers. They are used to slow down motors and increase the torque. Torque is the working power of the machine.When the sun gear rotates and planet gears are held in place. As the sun gear turns, it causes the planet gears to rotate in place along the inside of the ring. This motion, in turn, rotates the output shaft in a reverse direction.
Wind power gear is one of the components with the highest technical content in wind turbines. Through continuous and high starting point technical transformation. Guangda has introduced world-class high-precision equipment, established a complete quality management system and after-sales service network, and dedicated itself to providing users with high-quality products. Quality products and satisfactory service.
Gear Blank Forgings Specification
| Delivery state | Rough blank, semi-finished blank,finishing gears |
| Material | 18CrNiMo7-6, 30CrNiMo8,17CrNiMo6,20CrMnMo ,4340,34CrNiMo6, 42CrMo4,etc. |
| Melting process | EF+LF+VD |
| Delivery state | Rough blank, semi-finished blank,finishing gears,Black, peeled, polishing, bright, sand blast, hair line, etc. |
| Diameter | Max 5000mm |
| Max length/Diameter | 12m |
| Max weight | 60T |
| Annular Capacity | 100000pcs |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Certification | PED,DNV,BV,Rina,ISO,GL,ABS,LR |
| Application | Used for wind turbine gear box ,industril gear box,Generator, transmission, reduction motor, equipment transmission etc. |
Gear blank forging procedure
Orging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment
High-precision dimensional tolerance;Excellent mechanical properties;Produce different dimension based on customer’s requirements;Advanced manufacture equipments and inspection devices;Excellent technical personality;Control the production procedure strictly;Pay attention on the package protection;Quality full service.
Gear Blank Forgings Manufacture Capacity
| Company type | Science and Technology innovation board listed company. Stock code :688186 |
| Completed supply chain | Guangda is an leading and integrated steel manufacturer from smelting, forging, heat treatment to precision smart manufacturing . |
| Shape | Ring, Shaft, disc, round plate, Dysplasia forgings etc. |
| Smelting | Smelting capacity 500,000.00 ton/year . With own smeliting line of carbon steel,stainless steel, alloy steel and special steel . |
| Annual capacity for the forgings | Forging capacity 300,000.00 ton/year . With own professinal forging press machines 5000ton,4500ton,4000ton,3600ton,2000ton,1000ton and ring rolling mill machines and could manufacture the forging blank ourselves. |
| Machining | Turning, milling, boring ,grinding, finished machining, gear shaping ,gear hobbing, gear grinding capability. |
| Heat treatment | Own professional equipment for heat treatment for Annealing ,Normalizing ,Tempering ,QT, Isothermal annealing,Stress relief , Nitriding , Carburize ,Case-hardening etc |
| Surface treatment | High-pressure cleaning, sand blasting and thermal spraying. Complete surface treatment capability. |
Gear Blank Forgings Application
About Guangda for Gear Blank Forgings
Zhangjiagang Guangda Special Material Co.,Ltd was established in 2003, is one of the forging manufacturer for research and development, production, sales, service as one of the comprehensive company. We located in Jiangsu Province besides Shanghai. We provide different forgings of shaft ,gear blank , ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 500,000 tons for various of free-die forgings, ring rollings .
Guangda forgings are widely used in high-end equipment manufacturing industries such as new energy wind power, rail transit, mechanical equipment, aerospace, new energy power, gas turbine, Marine petrochemical, semiconductor chip equipment and so on.

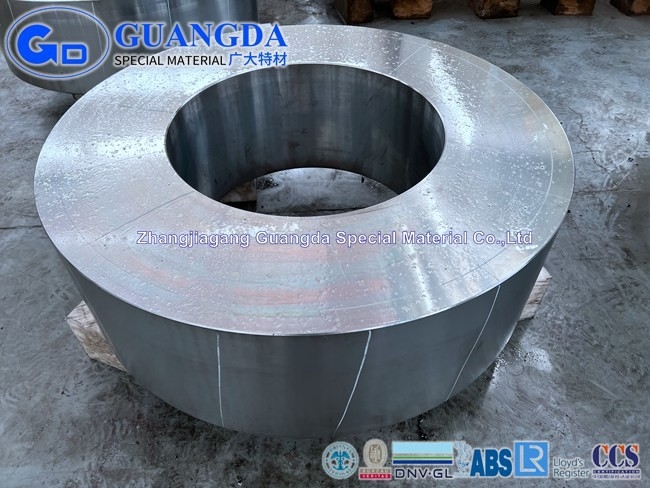

Forged gear blanks
Gear blanks
Gear blanks manufacturer
