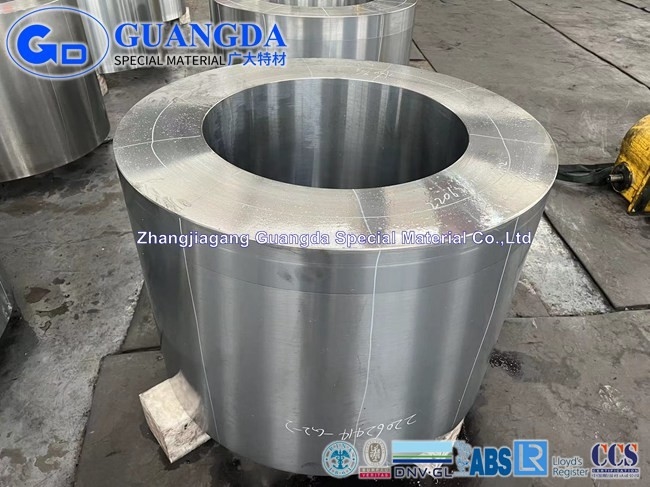

Alloy Steel Gear Blank Forgings Hot Forging Parts Turbine gears manfuacturer
Higher quality and increased strength and wear in forged gear blanks is achieved from contoured grain flow, reduced grain size and thermal processing that improves mechanical properties and metallurgical soundness from the open die forging process. All of our forgings are rough machined to allow for final machining.
Gear Blank Forgings Specification
| Delivery state | Rough blank, semi-finished blank,finishing gears |
| Material | 18CrNiMo7-6, 30CrNiMo8,17CrNiMo6,20CrMnMo ,4340,34CrNiMo6, 42CrMo4 etc. |
| Melting process | EF+LF+VD |
| Delivery state | Rough blank, semi-finished blank,finishing gears,Black, peeled, polishing, bright, sand blast, hair line, etc. |
| Diameter | Max 5000mm |
| Max length/Diameter | 12m |
| Max weight | 60T |
| Annular Capacity | 100000pcs |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Certification | PED,DNV,BV,Rina,ISO,GL,ABS,LR |
| Application | Used for wind turbine gear box ,industril gear box,Generator, transmission, reduction motor, equipment transmission etc. |
Gear blank forging procedure
Orging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment
High-precision dimensional tolerance;Excellent mechanical properties;Produce different dimension based on customer’s requirements;Advanced manufacture equipments and inspection devices;Excellent technical personality;Control the production procedure strictly;Pay attention on the package protection;Quality full service.
Gear Blank Forgings Manufacture Capacity
| Company type | Science and Technology innovation board listed company. Stock code :688186 |
| Completed supply chain | Guangda is an leading and integrated steel manufacturer from smelting, forging, heat treatment to precision smart manufacturing . |
| Shape | Ring, Shaft, disc, round plate, Dysplasia forgings etc. |
| Smelting | Smelting capacity 500,000.00 ton/year . With own smeliting line of carbon steel,stainless steel, alloy steel and special steel . |
| Annual capacity for the forgings | Forging capacity 300,000.00 ton/year . With own professinal forging press machines 5000ton,4500ton,4000ton,3600ton,2000ton,1000ton and ring rolling mill machines and could manufacture the forging blank ourselves. |
| Machining | Turning, milling, boring ,grinding, finished machining, gear shaping ,gear hobbing, gear grinding capability. |
| Heat treatment | Own professional equipment for heat treatment for Annealing ,Normalizing ,Tempering ,QT, Isothermal annealing,Stress relief , Nitriding , Carburize ,Case-hardening etc |
| Surface treatment | High-pressure cleaning, sand blasting and thermal spraying. Complete surface treatment capability. |
Gear Blank Forgings Application
About Guangda for the gear blank forgings
Zhangjiagang Guangda Special Material Co.,Ltd was established in 2003, is one of the forging manufacturer for research and development, production, sales, service as one of the comprehensive company. We located in Jiangsu Province besides Shanghai. We provide different forgings of shaft ,gear blank , ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 500,000 tons for various of free-die forgings, ring rollings .
Guangda is one of the leading gear manufacturers in China .We make various sizes of gears for different applications acoss multiple platforms . we have the experience and resources necessary to meet the demands of your business. You can count on our engineers and quality control teams to make the high-quality, custom gears you need.
Guangda has deep and long cooperation with NGC ,Voith ,Flender and ZF for supplying the gear box parts . In Chinese market, Guangda wind turbine gear steel ranks first in China for the capacity, quality and market share .And Guangda is the largest supplier to the world's top three customers NGC,ZF and Siemens for the gear box parts.
