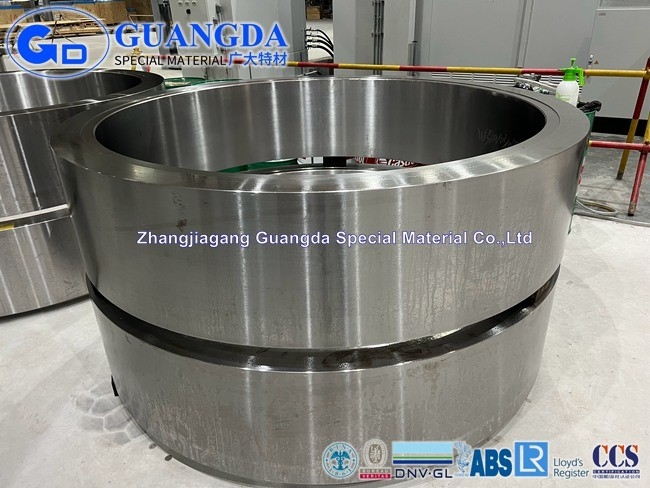

Ring Gear Blank Forging 42CrMo4 Large Diameter Rolled rings manufacturers
  • Ring Gear Blank Forging 42CrMo4 Large Diameter Rolled rings manufacturers
  • Ring Gear Blank Forging 42CrMo4 Large Diameter Rolled rings manufacturers
  • Ring Gear Blank Forging 42CrMo4 Large Diameter Rolled rings manufacturers
Ring Gear Blank Forging 42CrMo4 Large Diameter Rolled rings manufacturers

Ring Gear Blank Forging 42CrMo4 Large Diameter Rolled rings manufacturers

Place of Origin Jiangsu China
Brand Name Guangda
Certification DNV, BV, Rina, ISO, GL, ABS, LR,CCS ,PED
Model Number Gear ring blank
Product Details
Material:
18CrNiMo7-6, 42CrMo4 , 34CrNiMo6 Etc.
Heat Treatment:
Annealing,Normalizing,Tempering ,QT Etc .
Diameter:
Max 5000mm
Delivery Condition:
Rough Material ,semi-finished ,finished Machining
Process:
Milling,Stamping,Turning,Forging+Machining(if Need)+surface Treatment
Standard:
DIN,JIS,EN,ASTM,GOST
Highlight:

Ring Gear Blank Forging

,

Gear Blank Forging 42CrMo4

,

Large Diameter Rolled rings

Payment & Shipping Terms
Delivery Time
15-45 work days
Payment Terms
L/C, T/T, D/P, D/A
Product Description



Ring Gear Blank Forging 42CrMo4 Large Diameter Rolled rings manufacturers





Gear is one of the components with the highest technical content in industry. Through continuous and high starting point technical transformation. Guangda has introduced world-class high-precision equipment, established a complete quality management system and after-sales service network, and dedicated itself to providing users with high-quality products. Quality products and satisfactory service.​







Gear blank forging Product features



Material 42CrMo4,42CrMo
Process EAF+LF+VOD+Forging+Rough machining+QT+Finish machining
Acceptance rate 0.8mm flaw detection 100%
UT DIN EN10228 Quality-Class 3 C/c or D/d
Diameter Max 5000mm
Delivery state Rough blank, semi-finished blank,finishing gears
Surface Black, peeled, polishing, bright, sand blast, hair line, etc.
Application Used for wind turbine gear box ,industril gear box,Generator, transmission, reduction motor, equipment transmission etc.





Gear blank forging 42CrMo4 Chemical Composition



Standard Steel desination name Number C Si Mn P S Cr Mo Ni
EN10083 42CrMo4 1.7225 0.38-0.45 ≤0.4 0.60-0.90 ≤0.025 ≤0.035 0.90-1.20 0.15-0.30 -
EN10083 42CrMoS4 1.7227 0.38-0.45 ≤0.4 0.60-0.90 ≤0.025 0.02-0.04 0.90-1.20 0.15-0.30 -



Standard Steel designation name Number C Si Mn P S Cr Mo Ni
EN10250 42CrMo4 1.7225 0.38-0.45 ≤0.4 0.60-0.90 ≤0.035 ≤0.035 0.90-1.20 0.15-0.30 -






Gear blank forging procedure



Orging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment



High-precision dimensional tolerance;Excellent mechanical properties;Produce different dimension based on customer’s requirements;Advanced manufacture equipments and inspection devices;Excellent technical personality;Control the production procedure strictly;Pay attention on the package protection;Quality full service.





About Guangda for Gear blank forging

Zhangjiagang Guangda Special Material Co.,Ltd was established in 2003, is one of the forging manufacturer for research and development, production, sales, service as one of the comprehensive company. We located in Jiangsu Province besides Shanghai. We provide different forgings of shaft ,gear blank , ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 500,000 tons for various of free-die forgings, ring rollings .

We are qualified by the classifications such as PED,DNV, BV, Rina, ISO, GL, ABS, LR .Act as the high-tech enterprises with high-quality special alloy materials as the core business belong to the "advanced iron and steel materials" industry under the strategic emerging industries supported by the state.

There are two major product systems of alloy materials and alloy products:The alloy materials include high quality gear steel, high quality die steel, special stainless steel, high temperature alloy, ultra-high strength steel and other new material products encouraged by the state; Alloy products mainly include wind power equipment, rail transit and various precision mechanical parts made of alloy materials.

Guangda forgings are widely used in high-end equipment manufacturing industries such as new energy wind power, rail transit, mechanical equipment, aerospace, new energy power, gas turbine, Marine petrochemical, semiconductor chip equipment and so on.

Guangda Core advantage

  • Listed company. Strong scientific research ability , Strength for Market experience and customer service .
  • Completed industrial supply chain smelting, casting ,forging, heat treatment , precision finished processing.
  • Better control for the cost ,quality,delivery term as we control every link of the completed chain.
  • Certificate PED,DNV, BV, Rina, ISO, GL, ABS, LR etc.
  • Different industry bases :Smelting,Forging,Cast steel, cast iron ,Precision Intelligent Manufacturing Base.
  • Experience:Cooperation with many Europe customers more than 10years





Ring Gear Blank Forging 42CrMo4 Large Diameter Rolled rings manufacturers 0



Ring Gear Blank Forging 42CrMo4 Large Diameter Rolled rings manufacturers 1



Ring Gear Blank Forging 42CrMo4 Large Diameter Rolled rings manufacturers 2
