Turbine Forging
>
|
| Place of Origin | China |
| Brand Name | Guangda |
| Certification | DNV, BV, Rina, ISO, GL, ABS, LR |
| Model Number | 750kw, 1000kw ,2.5MW,2MW,3MW,4MW,5MW,6MW etc. |

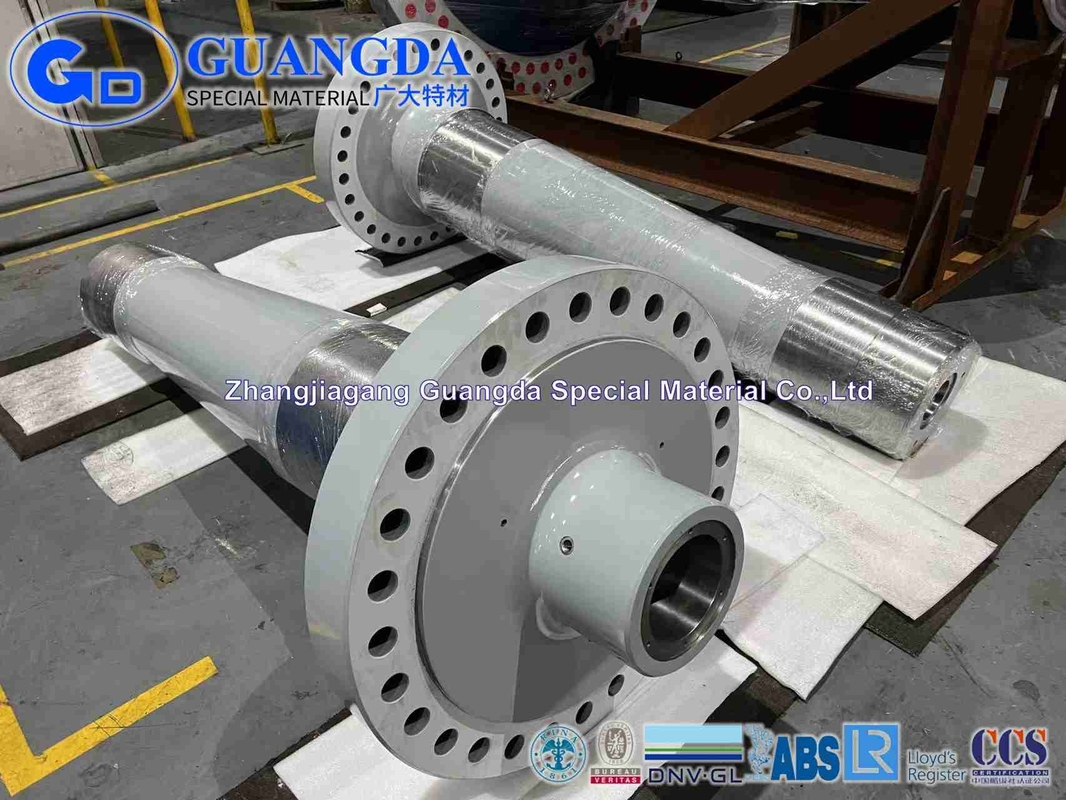

Main Shaft Transmission Wind Turbine Shaft Main Shaft Wind Turbine Manufacturer
A wind turbine generates electricity by harnessing the power of wind. A wind turbine shaft is the most central part of a wind turbine, subjected to highly dynamic loads and operating conditions. The energy from wind is converted into mechanical energy with the help of blades and rotors, which is then transferred to a generator through the gear box and shaft.
The wind turbine generally consists of two types of shafts i.e. main shaft and generator shaft. The main shaft is a low speed shaft with the turbine rotor bolted through a strong disc. The generator shaft is a high speed shaft coupled with the output shaft of the gearbox.
Turbine forging Products features
| Application | Wind power shaft ,wind turbine spindle |
| Steel Grade |
34CrNiMo6,42CrMo4,30CrNiMo8,34CrNiMo6 etc. |
| Smelting | EAF+LF+VD |
| UT | SEP1921,EN10228-3 C/c D/d |
| Heat treatment | Normalized , queching and tempering ,stress relief (if needed )+others |
| Delivery condition | Rough ,Semi-finished ,finished |
| Standard | EN10250,EN10083,SEW550 etc. |
| Equiment | 5000T pressing machine |
Turbine forging core advantage
| Completed supply chain | Guangda is an leading and integrated steel manufacturer from smelting, forging, heat treatment to precision smart manufacturing . |
| Quality control | Guangda achieved completely whole process supply from raw materials to finished products for the wind turbine spindle. |
| Main products | 750KW,1000KW,1.5MW,2MW,2.5WM,3MW,6MW,12MW etc. |
| Annual Capacity | 5000pcs |
| Customer base | Cooperate with the most of the 10 world top wind turbine manufacturers and other world's leading high-end wind turbine manufacturers to establish a good strategic cooperation. |
| Listed company | Strong scientific research ability , Strength for Market experience and customer service . |
| Certificate | PED,DNV, BV, Rina, ISO, GL, ABS, LR etc. |
Shafts used for other industry
Guangda is a leading and integrated steel manufacturer from smelting, forging,casting, heat treatment to precision smart manufacturing . We could provide rough blank or semi-finishing or precision finishing parts for the wind power industry .
Guangda mainly focus on new energy wind power parts such as large offshore wind turbine castings, wind turbine forgings and wind turbine gearbox parts.60% of our business are for wind power parts . NGC, Flender, Shanghai electric ,CRRC, ZF, Mingyang ,DEC,Windey are all Guangda long cooperation customers in the wind industry.
Based on the powerful overall solution, Guangda uses advanced smelting, forging, heat treatment technology and metal processing technology to connect the upstream and downstream industrial system.
According to the different demands of customers for products, we provide users with integrated product design, processing, assembly and other services, and provide customers with overall solutions and value maximization.
| Wind turbine casting parts | Rotor Hub, Nacelle head carrier , Main carrier, Main shaft ,Shaft sleeve, Torque arm ,Shell frame, Support base , Yaw base plate, Planet carrier ,Cover, Frame, Ring , Tower connection part, Nacelle connection part, All kinds of the structure parts for the widn turbines . |
| Wind turbine forging parts | Main shaft, Flange, Yaw flange ,Rolled Ring, Flanges , Gear box parts etc. |
| Wind turbine gear box parts | Torque arm ,Planet shaft, Sun shaft, Planet gear, Internal gear, Planet carrier, Gear box cover etc. |
| Products type | 2MW 3MW 3.2MW 3.6MW 4MW 4.5MW 5MW 5.5MW 6.25MW 7MW 8MW 8.3MW 11MW 12MW 16.6MW etc |
