Turbine Forging
>
|
| Place of Origin | Jiangsu China |
| Brand Name | Guangda |
| Certification | DNV, BV, Rina, ISO, GL, ABS, LR ,CCS ,PED |
| Model Number | 2WM,3MW,5.5MW,6WM,12MW etc. |

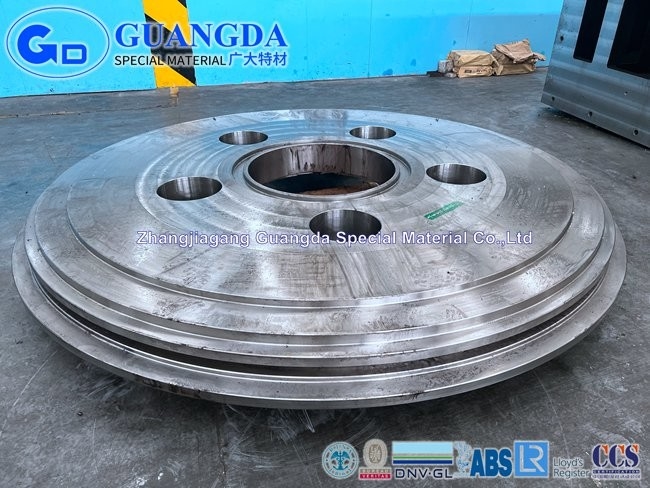

Gear Box Cover Forged Plate Custom Forged Wheels Forging Manufacturer
The gearbox of a wind turbine must withstand a range of demanding and variable conditions. Loads, stresses, vibrations and temperatures are constantly changing. The components of the gearbox, such as the cover, must be able to withstand such conditions.
Big or small we offer a custom made solution to many forging applications, from blanks to finished maching components. Using our variety of equipment, we have the capability to forge custom sized different kind of covers .
Wind turbine forging Description
| Application | Wind power turbine ,wind power gearbox |
| Steel Grade | 42CrMo4 |
| Smelting | EAF+LF+VD |
| Grain size | ≥5 |
| UT | SEP1921,EN10228-3 C/c D/d |
| Heat treatment | Normalized , queching and tempering ,stress relief (if needed )+others |
| Delivery condition | Rough ,Semi-finished ,finished |
| Standard | EN10250,EN10083,SEW550 etc. |
| Equiment | 5000T pressing machine |
| Forging rotio | ≥5 |
Wind turbine forging Chemical composition
| Steel desination name | Number | C | Si | Mn | P | S | Cr | Mo | Ni |
| 42CrMo4 | 1.7225 | 0.38-0.45 | ≤0.40 | 0.60-0.90 | ≤0.035 | ≤0.035 | 0.90-1.20 | 0.15-0.30 | - |
Wind turbine forging Other material we could provide
| Type | Material |
| Carbon steel | C15,C22,C25,C30,C35,C40,C45,C50,C55,C60,S355J2G3 etc. |
| Alloy steel | 25CrMo4,42CrMo(S)4,AISI4130,AISI4140,AISI4150,34CrNiMo6,30CrNiMo8,31CrMoV9, 18CrNiMo7-6,16MnCr(S)5,20MnCr(S)5,51CrV4,20MnCr5,20CrMnMoH etc. |
| Stainless steel | 630 17-4PH,630 17-7PH, 632 15-7MoPH,XM12 15-5PH,2205,2507,F55,2205 etc. |
| Tool and die steel | H11-1.2343,H13-1.2344, 1.2738,1.2718 ,1.2343, 1.2312 ,XPM , 80, DVA etc. |
| Special steel | GH2132, GH3030, GH3128, GH4145 ,GH4169 ,GH4080 ,Inconel600 ,Inconel601 ,Inconel625 ,Inconel718 N07718 / GH4169, Inconlex - 750 ,Incoloy800H,Incoloy825,Incoloy901,Incoloy925,Incoloy926 etc. |
Guangda is a leading and integrated steel manufacturer from smelting, forging,casting, heat treatment to precision smart manufacturing . We could provide rough blank or semi-finishing or precision finishing parts for the wind power industry .
Guangda mainly focus on new energy wind power parts such as large offshore wind turbine castings, wind turbine forgings and wind turbine gearbox parts.60% of our business are for wind power parts . NGC, Flender, Shanghai electric ,CRRC, ZF, Mingyang ,DEC,Windey are all Guangda long cooperation customers in the wind industry.
Based on the powerful overall solution, Guangda uses advanced smelting, forging, heat treatment technology and metal processing technology to connect the upstream and downstream industrial system.
According to the different demands of customers for products, we provide users with integrated product design, processing, assembly and other services, and provide customers with overall solutions and value maximization.
| Wind turbine casting parts | Rotor Hub, Nacelle head carrier , Main carrier, Main shaft ,Shaft sleeve, Torque arm ,Shell frame, Support base , Yaw base plate, Planet carrier ,Cover, Frame, Ring , Tower connection part, Nacelle connection part, All kinds of the structure parts for the widn turbines . |
| Wind turbine forging parts | Main shaft, Flange, Yaw flange ,Rolled Ring, Flanges , Gear box parts etc. |
| Wind turbine gear box parts | Torque arm ,Planet shaft, Sun shaft, Planet gear, Internal gear, Planet carrier, Gear box cover etc. |
| Products type | 2MW 3MW 3.2MW 3.6MW 4MW 4.5MW 5MW 5.5MW 6.25MW 7MW 8MW 8.3MW 11MW 12MW 16.6MW etc |
