1.2344 H13 ESR Hot Working Mold Tool And Die Steel Manufacturer

1.2344 H13 ESR Hot Working Mold Steel With High Touhness High Isotropy Good Thermal Stability

DIN 1.2344 tool steel (also known as AISI H13 steel or just H13) is a tool steel grade standardised for hot working. The main feature of this grade is the combination of alloyed elements of chromium, molybdenum and vanadium, Cr-Mo-V, which provides a high wear resistance to thermal shock. It is well known as for its great strength, and heat resistance. It is heavily used for die casting and the cold heading field. The presence of high vanadium in DIN 1.2344 can handle the abrasion at both low and high temperatures. It always provides a uniform and high level of machinability. This tool steel is mostly used for aluminum, magnesium and zinc die casting.

Guangda modified 2433 material With High Touhness And High Isotropy has good thermal stability.

Tool and die steel 1.2344 H13 Chemical composition

Tool and die steel 1.2344 H13  property

The hot work tool steel 1.2344 ESR has an improved material property due to the Electro-slag Remelting Process . Our ESR material is used when better material purity, particularly high tensile strength and compressive strength are required. Compared to the steel 1.2343 ESR, this material has a higher carbon content and is much harder and more wear-resistant. The material 1.2344 ESR is given a good tensile strength and toughness by the soft annealing.

1. Electro slag remelting ,annealing with high temperature diffusion process and ultra refinement treatment has food homogeneous microstructure and finer dispersed carbides .
2. Transverse/longitudinal≥0.8
3. Good tempering performance ,high toughness ,high remperature strength ,good thermal stability and thermal fatigue resistance.
4. Annealing hardness≤230HB ,quenching hardness 51-55HRC ,tempering hardness 46-50HRC.

Tool and die steel 1.2344 H13 Recommand heat treatment

Technical service for Tool and die steel DVA/DVA-Nb

Vacuum heat treatment and surface treatment of mold .Oxynitriding ,carbonitriding ,carburizing and nitriding .

Tool and die steel 1.2344 H13 applications

• Die casting dies for aluminium, magnesium and zinc, extrusion dies for aluminium and brass,
• Liners, mandrels, pressure pads, followers, bolsters, die cases, die holders
• Adaptor rings for copper and brass extrusion.
• Plastic moulds, shear blades for hot work and hot swaging dies.
• Hot stamping and press forge dies, split hot heading dies, gripper dies,
• Hot punching, piercing and trimming tools.
• Dies for the pressure casting of light alloys.
• Wear resistance plastic moulds.
• Tooling for the extrusion of light alloys and steels .
• Hot work shear blades.
• Rolls for profiling tools (welding area).
• Forging dies.

Other Tool and die steel we provided

About Guangda for die and tool steel

Guangda are professional die and tool steel manfuacturer and based on professional technologies,well-furnished equipmnets with rich experience. We provide high quality die steel materials: super large section pre-hardening plastic die , high polishing mirror die , high polishing mirror die , corrosion resistant mirror die , car lamp die steel, high heat strength hot die steel , high heat stability hot work die steel etc .

We are qualified by the classifications such as PED,DNV, BV, Rina, ISO, GL, ABS, LR .Act as the high-tech enterprises with high-quality special alloy materials as the core business belong to the "advanced iron and steel materials" industry under the strategic emerging industries supported by the state.

Products are widely used in automobille,machinery and electronics industry , home appliances ,defense and aerospace industry .Especially , the newly developed die-casting mold steel ,core bar for large diameter steel sleeves and big plastic mould block ,have filled in the technical blanks and reached the top quality in the world .At the same time ,we maintain leading role in advanced vacuum heat treatment technology and advanced surface technology with the support of the research Group .

Smelting


Forging


Heat treatment


Machining

​

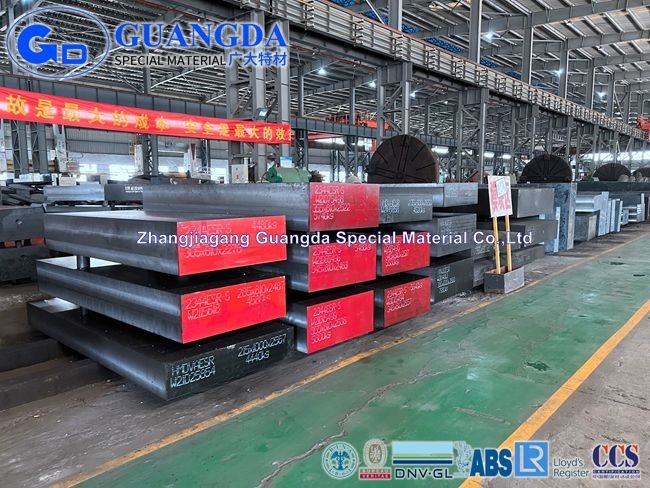

Stock
