Open Die Forgings
>
|
| Place of Origin | Jiangsu China |
| Brand Name | Guangda |
| Certification | DNV, BV, Rina, ISO, GL, ABS, LR ,CCS ,PED |
Mill Rolls Forged steel Rolls Forged Parts in Metallurgical Industry Stainless Steel Forging
Guangda offers open die forging. It forms heated metal by force between the top and bottom molds. The term open mold comes from the fact that an artifact is not closed. With each successive stroke of the metal, it gradually shapes to the desired size, increasing its strength and grain structure.
Open die forging process means that high precision parts cannot be formed only by forging process. As a result, post-forging processing is often required to achieve the desired detail finish. Our unique forging equipment enables forging with tight tolerances to reduce the number of finished parts required for machining.
Open die forgings forged steel rolls Specification
| Application | Forged mill rolls |
| Diameter | φ150mm-15000mm |
| Smelting | EAF+LF+VD |
| UT | SEP1921,EN10228-3 C/c D/d |
| Heat treatment | Normalized , queching and tempering ,stress relief (if needed )+others |
| Delivery condition | Rough ,Semi-finished ,finished |
| Standard | EN10250,EN10083,SEW550 etc. |
| Equiment | 5000T pressing machine |
Open die forgings forged steel rolls Material we could provide
| Type | Material |
| Carbon steel | C15,C22,C25,C30,C35,C40,C45,C50,C55,C60,S355J2G3 etc. |
| Alloy steel |
25CrMo4,42CrMo(S)4,AISI4130,AISI4140,AISI4150,34CrNiMo6,30CrNiMo8,31CrMoV9, 18CrNiMo7-6,16MnCr(S)5,20MnCr(S)5,51CrV4,20MnCr5,20CrMnMoH etc. |
| Stainless steel | 630 17-4PH,630 17-7PH, 632 15-7MoPH,XM12 15-5PH,2205,2507,F55,2205 etc. |
| Tool and die steel | H11-1.2343,H13-1.2344, 1.2738,1.2718 ,1.2343, 1.2312 ,XPM , 80, DVA etc. |
| Special steel | GH2132, GH3030, GH3128, GH4145 ,GH4169 ,GH4080 ,Inconel600 , Inconel601 ,Inconel625 ,Inconel718 N07718 / GH4169, Inconlex - 750, Incoloy800H,Incoloy825,Incoloy901,Incoloy925,Incoloy926 etc. |
Open die forgings forged steel rolls about Guangda
Zhangjiagang Guangda Special Material Co.,Ltd was established in 2003, is one of the forging manufacturer for research and development, production, sales, service as one of the comprehensive company. We located in Jiangsu Province besides Shanghai. We provide different forgings of shaft ,gear blank , ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 500,000 tons for various of free-die forgings, ring rollings .
We are qualified by the classifications such as PED,DNV, BV, Rina, ISO, GL, ABS, LR .Act as the high-tech enterprises with high-quality special alloy materials as the core business belong to the "advanced iron and steel materials" industry under the strategic emerging industries supported by the state.
There are two major product systems of alloy materials and alloy products:The alloy materials include high quality gear steel, high quality die steel, special stainless steel, high temperature alloy, ultra-high strength steel and other new material products encouraged by the state; Alloy products mainly include wind power equipment, rail transit and various precision mechanical parts made of alloy materials.
Guangda forgings are widely used in high-end equipment manufacturing industries such as new energy wind power, rail transit, mechanical equipment, aerospace, new energy power, gas turbine, Marine petrochemical, semiconductor chip equipment and so on.
Smelting
Forging
Heat treatment
Machining
Finished forging parts in workshop
sugar cane roller

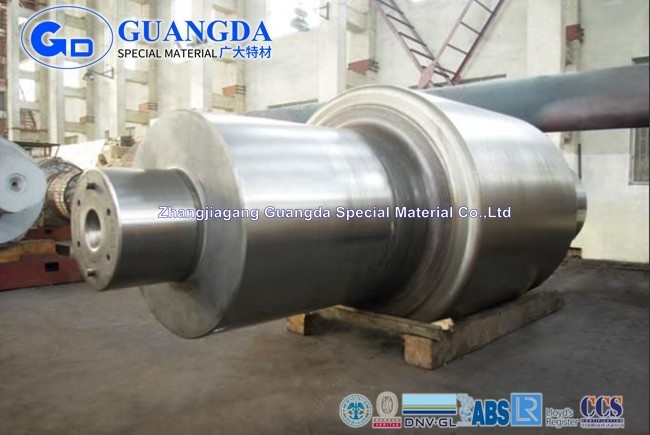

forged rolls
forged steel rolls
