Forged Shaft
>
|
| Place of Origin | Jiangsu China |
| Brand Name | Guangda |
| Certification | DNV, BV, Rina, ISO, GL, ABS, LR,CCS |

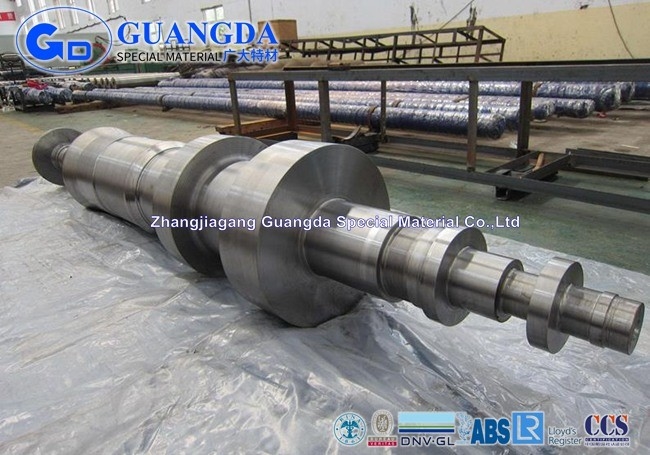

Propeller Shaft Marine Shaft Boat Shaft Ship Shaft Suppliers & Manufacturer
Propeller Shaft,also known as screw shaft, stern shaft, tail shaft, propulsive shaft. Propeller shaft has one end with flange which will be connected to intermediate shaft and another end which is jointed to the ship screw.
We produce heavy steel shaft forgings for shipbuilding, its quality level verified by World Classification Society, for example LR, DNV, ABS, GL, BV, RINA and CCS.
Forged Shaft Characteristic which we can produce:
Longitudinal scope:3,000 mm–20,000 mm
Weight scope:1,000 kg–50,000 kg
Shape: pull rod or flange shaft or step or Conical.
Material: carbon steel and alloy steel.
Quality controlling is full from steel melting, forging, heat treatment for mechanical, NDE, microstructure, mechanical, impact
etc.
All Products we manufacture according to clients drawing and requirement.
Any interests in our company and products, please feel free to contact us for quotation.
Products features forged shaft propeller shaft
| Application | Large step shaft forging |
| Smelting | EAF+LF+VD |
| UT | SEP1921,EN10228-3 C/c D/d |
| Heat treatment | Normalized , queching and tempering ,stress relief (if needed )+others |
| Delivery condition | Rough ,Semi-finished ,finished |
| Standard | EN10250,EN10083,SEW550 etc. |
| Equiment | 5000T pressing machine |
Material forged shaft propeller shaft
| Type | Material |
| Carbon steel | C15,C22,C25,C30,C35,C40,C45,C50,C55,C60,S355J2G3 etc. |
| Alloy steel |
25CrMo4,42CrMo(S)4,AISI4130,AISI4140,AISI4150,34CrNiMo6,30CrNiMo8,31CrMoV9, |
| Stainless steel | 630 17-4PH,630 17-7PH, 632 15-7MoPH,XM12 15-5PH,2205,2507,F55,2205 etc. |
| Tool and die steel | H11-1.2343,H13-1.2344, 1.2738,1.2718 ,1.2343, 1.2312 ,XPM , 80, DVA etc. |
| Special steel | GH2132, GH3030, GH3128, GH4145 ,GH4169 ,GH4080 ,Inconel600 , Inconel601 ,Inconel625 ,Inconel718 N07718 / GH4169, Inconlex - 750, Incoloy800H,Incoloy825,Incoloy901,Incoloy925,Incoloy926 etc. |
Core advantage forged shaft propeller shaft
| Completed supply chain | Guangda is an leading and integrated steel manufacturer from smelting, forging, heat treatment to precision smart manufacturing . |
| Quality control | Guangda achieved completely whole process supply from raw materials to finished products for the wind turbine spindle. |
| Main products | wind power, hydroelectric, thermal, nucler power), milling, oil and gas, shipping equipment, pressure machine, machinery, military, aerospace industries. etc. |
| Annual Capacity | 5000pcs |
| Customer base | Cooperate with the most of the 10 world top wind turbine manufacturers and other world's leading high-end wind turbine manufacturers to establish a good strategic cooperation. |
| Listed company | Strong scientific research ability , Strength for Market experience and customer service . |
| Certificate | PED,DNV, BV, Rina, ISO, GL, ABS, LR etc. |
Axle shaft forging used for other industry forged shaft propeller shaft
About Guagnda forged shaft propeller shaft
Guangda is a specialized in forging research and development, production, sales, service as one of the comprehensive company. We could provide rough blank or semi-finishing or finishing parts focuses on large forging equipment b.We have formed a whole industrial chain of smelting, casting, machining and surface treatment, and our technology and cost control are leading in the world.
As a leading forged shafts manufacturer, we have greater resilience in our production, which makes our forged steel shaft turnaround very fast. In addition, due to our distinguished characteristics of manufacturing and raw materials, the quality of forged steel shafts that we create are of better quality than shafts machined from other stock.
Smelting
Forging
Heat treatment
Machining
Propeller Shaft
Marine Shaft
Ship shaft
