Forged Shaft
>
|
| Place of Origin | China |
| Brand Name | Guangda |
| Certification | DNV, BV, Rina, ISO, GL, ABS, LR |

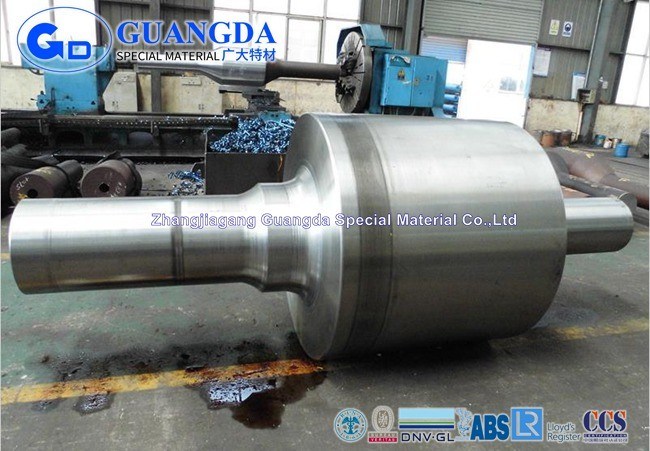

Cold Rolled Shaft Rolling Shaft Forged Steel Rolls Manufacturer From China
Forge steel roll provides a mill roller solution for rolling mill. It is one of the most wear parts during the rolling process. It is mainly made of forged steel. It is forged in hydraulic presses for high toughness and pureness, widely used in cold rolling mill, steckel mills and continuous hot strip mills. As different rolling mills have specific requirements and various rolling conditions, different alloy elements can be added into the steel for higher performance of the roll. The roll covers forged steel work roll or intermediate roll, forged steel back up roll.
Forged shaft rolled shaft Products features
| Application | Roller for steel rolling mill |
| Smelting | EAF+LF+VD |
| UT | SEP1921,EN10228-3 C/c D/d |
| Heat treatment | Normalized , queching and tempering ,stress relief (if needed )+others |
| Delivery condition | Rough ,Semi-finished ,finished |
| Standard | EN10250,EN10083,SEW550 etc. |
| Equiment | 5000T pressing machine |
Forged shaft rolled shaft Material we could provide
| Type | Material |
| Carbon steel | C15,C22,C25,C30,C35,C40,C45,C50,C55,C60,S355J2G3 etc. |
| Alloy steel |
25CrMo4,42CrMo(S)4,AISI4130,AISI4140,AISI4150,34CrNiMo6,30CrNiMo8, 31CrMoV9,18CrNiMo7-6, 20MnCr5,20CrMnMoH,16MnCr(S)5,20MnCr(S)5, 51CrV4, etc. |
| Stainless steel | 630 17-4PH,630 17-7PH, 632 15-7MoPH,XM12 15-5PH,2205,2507,F55,2205 etc. |
| Tool and die steel | H11-1.2343,H13-1.2344, 1.2738,1.2718 ,1.2343, 1.2312 ,XPM , 80, DVA etc. |
| Special steel | GH2132, GH3030, GH3128, GH4145 ,GH4169 ,GH4080 ,Inconel600 , Inconel601 ,Inconel625 ,Inconel718 N07718 / GH4169, Inconlex - 750, Incoloy800H,Incoloy825,Incoloy901,Incoloy925,Incoloy926 etc. |
Forged shaft rolled shaft Guangda core advantage
| Completed supply chain | Guangda is an leading and integrated steel manufacturer from smelting, forging, heat treatment to precision smart manufacturing . |
| Quality control | Guangda achieved completely whole process supply from raw materials to finished products for the wind turbine spindle. |
| Main products | wind power, hydroelectric, thermal, nucler power), milling, oil and gas, shipping equipment, pressure machine, machinery, military, aerospace industries. etc. |
| Annual Capacity | 5000pcs |
| Customer base | Cooperate with the most of the 10 world top wind turbine manufacturers and other world's leading high-end wind turbine manufacturers to establish a good strategic cooperation. |
| Listed company | Strong scientific research ability , Strength for Market experience and customer service . |
| Certificate | PED,DNV, BV, Rina, ISO, GL, ABS, LR etc. |
Forged shaft rolled shaft used for other industry
Axle shaft forgings About Guagnda
Zhangjiagang Guangda Special Material Co.,Ltd was established in 2003, is one of the forging manufacturer for research and development, production, sales, service as one of the comprehensive company. We located in Jiangsu Province besides Shanghai. We provide different forgings of shaft ,gear blank , ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 500,000 tons for various of free-die forgings, ring rollings .
We are qualified by the classifications such as PED,DNV, BV, Rina, ISO, GL, ABS, LR .Act as the high-tech enterprises with high-quality special alloy materials as the core business belong to the "advanced iron and steel materials" industry under the strategic emerging industries supported by the state.
There are two major product systems of alloy materials and alloy products:The alloy materials include high quality gear steel, high quality die steel, special stainless steel, high temperature alloy, ultra-high strength steel and other new material products encouraged by the state; Alloy products mainly include wind power equipment, rail transit and various precision mechanical parts made of alloy materials.
Guangda forgings are widely used in high-end equipment manufacturing industries such as new energy wind power, rail transit, mechanical equipment, aerospace, new energy power, gas turbine, Marine petrochemical, semiconductor chip equipment and so on.
Smelting
Forging
Heat treatment
Machining
Cold Rolled Shaft
Rolling Shaft
Forged Steel Rolls
