Forged Shaft
>
|
| Place of Origin | China |
| Brand Name | Guangda |
| Certification | DNV, BV, Rina, ISO, GL, ABS, LR |

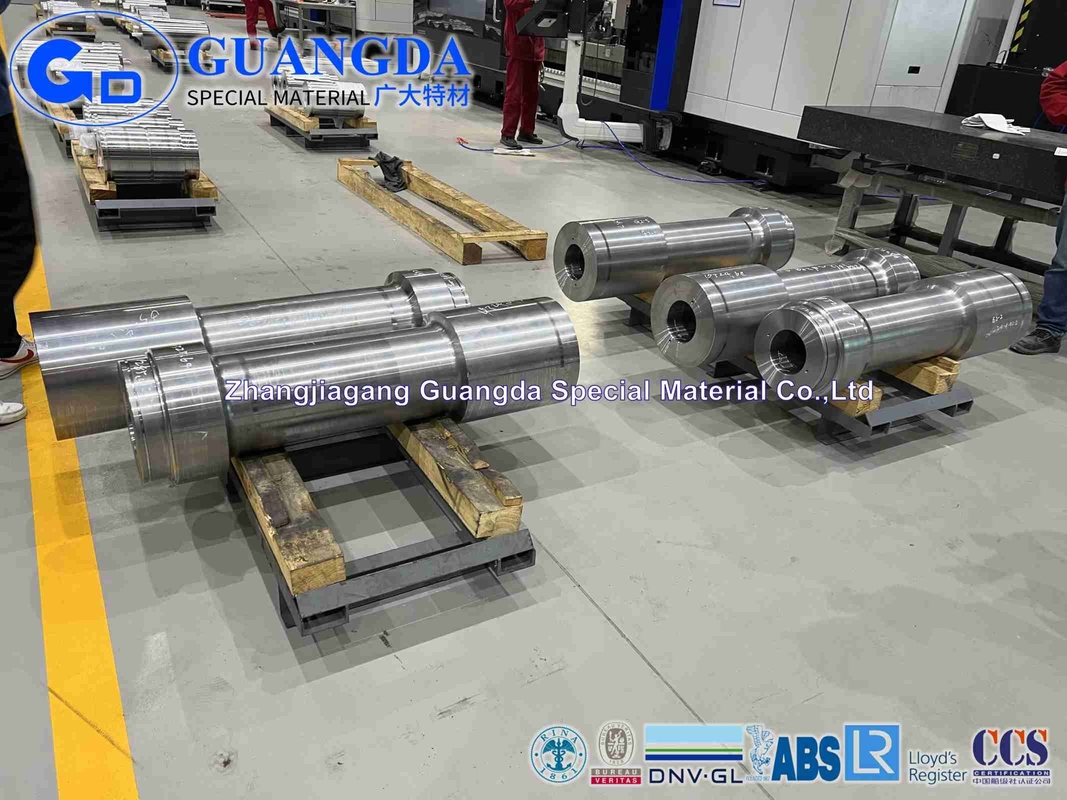

Precision Shaft Step Shaft Forging Shaft Manufacturer Guangda Precision Shafts
Guangda manufacture produces forged shafts, forged crankshafts and forged step shafts in carbon steel, alloy steel, stainless steel,and tool steel to ASTM, AMS, AISI, SAE and other industry-recognized specifications.
Stepped shafts are widely used in drive systems. They are generally holding large gears and cams, which are key elements in power transfer. Mostly supported by bearings at the end, the shaft experiences bending loads, axial thrust and torsional loads. The shaft must have greater strength to withstand these loads.
Forged shaft step shaft Products features
| Application | Coupling shaft |
| Smelting | EAF+LF+VD |
| UT | SEP1921,EN10228-3 C/c D/d |
| Heat treatment |
Normalized , queching and tempering ,stress relief |
| Delivery condition | Rough ,Semi-finished ,finished |
| Standard | EN10250,EN10083,SEW550 etc. |
| Equiment | 5000T pressing machine |
Forged shaft step shaft Material
| Type | Material |
| Carbon steel | C15,C22,C25,C30,C35,C40,C45,C50,C55,C60,S355J2G3 etc. |
| Alloy steel |
25CrMo4,42CrMo(S)4,AISI4130,AISI4140,AISI4150,34CrNiMo6,30CrNiMo8,31CrMoV9, |
| Stainless steel | 630 17-4PH,630 17-7PH, 632 15-7MoPH,XM12 15-5PH,2205,2507,F55,2205 etc. |
| Tool and die steel | H11-1.2343,H13-1.2344, 1.2738,1.2718 ,1.2343, 1.2312 ,XPM , 80, DVA etc. |
| Special steel |
GH2132, GH3030, GH3128, GH4145 ,GH4169 ,GH4080 ,Inconel600 , |
Forged shaft step shaft Core advantage
| Company type | Science and Technology innovation board listed company. Stock code :688186 |
| Completed supply chain | Guangda is an leading and integrated steel manufacturer from smelting, forging, heat treatment to precision smart manufacturing . |
| Annual capacity for the forgings | 300,000.00 ton |
| Max length/Diameter | 12m |
| Max weight | 60T |
| Machining | Turning, milling, boring ,grinding, finished machining, gear shaping ,gear hobbing, gear grinding capability. |
| Heat treatment | Normalizing, QT, annealing, carburizing, nitriding with complete heat treatment capacity |
| Surface treatment | High-pressure cleaning, sand blasting and thermal spraying. Complete surface treatment capability. |
| Certificate | PED,DNV, BV, Rina, ISO, GL, ABS, LR etc. |
Forged shaft step shaft used for other industry
Forged shaft step shaft About Guagnda
Guangda is a specialized in forging research and development, production, sales, service as one of the comprehensive company. We could provide rough blank or semi-finishing or finishing parts focuses on large forging equipment b.We have formed a whole industrial chain of smelting, casting, machining and surface treatment, and our technology and cost control are leading in the world.
As a leading forged shafts manufacturer, we have greater resilience in our production, which makes our forged steel shaft turnaround very fast. In addition, due to our distinguished characteristics of manufacturing and raw materials, the quality of forged steel shafts that we create are of better quality than shafts machined from other stock.
Smelting
Forging
Heat treatment
Machining
Inspection
Peoducts on site
Precision Shaft
Step Shaft
Forging Shaft Manufacturer
