| Place of Origin | Jiangsu China |
| Brand Name | Guangda |
| Certification | DNV, BV, Rina, ISO, GL, ABS, LR ,CCS ,PED |
| Model Number | 3MW 3.2MW 4MW 5.5MW 6.25MW 7MW 8MW 11MW 16.6MW etc. |

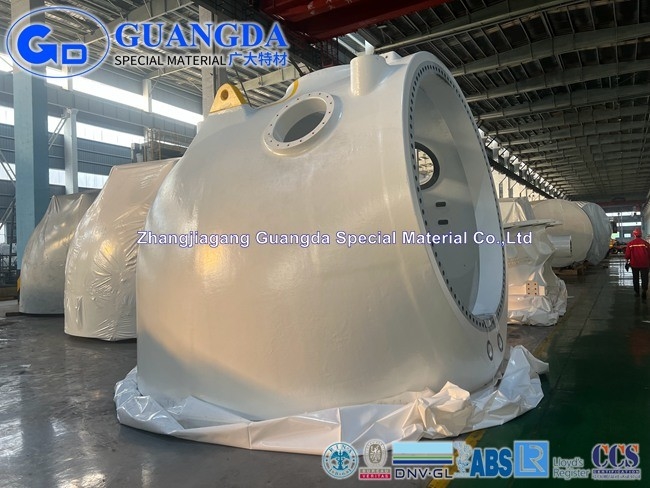

China iron casting Wind Turbine Nacelle Head Carrier Spheroidal Cast Irons Large Casting Parts
Nacelle head carrier of wind turbine connected to the tower and support the whole nacella structure . Nacelle head carrier is casting structure ,the material is nodular cast iron,which has good performance of vibration absorption
A wind turbine casting refers to components that are cast or molded to specifications all of which are then assembled to form wind energy systems. The components of wind turbines vary as per requirements, deployment area or location, type as well as required output size height and various other factors. The primary parts that undergo casting include nacelle head carrier, rotor hubs, and main carriers.
China iron casting Wind turbine castings Description
| Application | Wind turbine nacelle head carrier |
| Steel Grade | Spheroidal cast irons QT400-18AL |
| UT | EN12680-3 |
| MPI | EN1369 |
| Metallic products inspection | EN10204-2004 |
| Surface treatment | Sand blasting ,Corrosion protection and painting |
China iron casting Wind turbine castings Chemical composition
| Steel desination name | C | Si | Mn | P | S | Mg | RE |
| QT400-18AL | ≈0.38 | ＜2.50 | ＜0.5 | ＜0.08 | 0.025 | 0.03-0.05 |
≈0.025 |
China iron casting Wind turbine castings test
Guangda castings products overview
| Wind turbine casting parts | Rotor Hub, Nacelle head carrier , Main carrier, Main shaft ,Shaft sleeve, Torque arm ,Shell frame, Support base , Yaw base plate, Planet carrier ,Cover, Frame, Ring , Tower connection part, Nacelle connection part, All kinds of the structure parts for the widn turbines . |
| Equipment castings | Floor type boring machine castings ,Planner castings ,CNC machine castings, Milling equipment castings , Work bench ,Stand column, Equipment beam , Plastic mechanical castingsetc. |
| Large shell castings | Gear box shell ,Air cylinder castings, Front Box structure , Oil cylinder etc. |
| Structure support castings | Main bearing housing ,Planet carrier , |
| Disc and ring type castings | Flange ,grinding disc ,Grinding roller , solid of revolution etc. |
One-stop castings delivery capacity
| Company type | Science and Technology innovation board listed company. Stock code :688186 |
| Annual capacity for the castings | 210,000.00 ton |
| Max length/Diameter | 15m |
| Max weight | 200T |
| Products type | 2MW 3MW 3.2MW 3.6MW 4MW 4.5MW 5MW 5.5MW 6.25MW 7MW 8MW 8.3MW 11MW 12MW 16.6MW etc |
| Material | QT350-20 ,QT400-18, QT450-10,QT500-7, QT500-14,QT600-3, QT700-2, QT800-2 ,HT200, HT250, HT300,RUT300 etc. |
| Machining | Turning, milling, boring ,grinding, finished machining, gear shaping ,gear hobbing, gear grinding capability. |
| Heat treatment | Normalizing, QT, annealing, carburizing, nitriding with complete heat treatment capacity |
| Surface treatment | High-pressure cleaning, sand blasting and thermal spraying. Complete surface treatment capability. |
Guangda introduction
Guangda is a professional manufacturer for the wind turbine parts including the wind turbine castings ,forgings and gear box parts . As we are an integrated steel manufacturer from smelting, forging,casting, heat treatment to precision smart manufacturing .We could provide rough blank or semi-finishing or finishing parts for the wind power industry .
We have deep cooperation with ZF, Mingyang ,DEC,Windey, Envision, NGC,Flender,Shanghai electric ,CRRC. In the field of wind power technology, Guangda manufactures ready-to-install cast parts for wind turbines, according to your specifications and requirements, including heavy-duty and complex components made of a wide variety of materials.
Guangda Production on site
China iron casting
Large casting foundry
Foundry company
