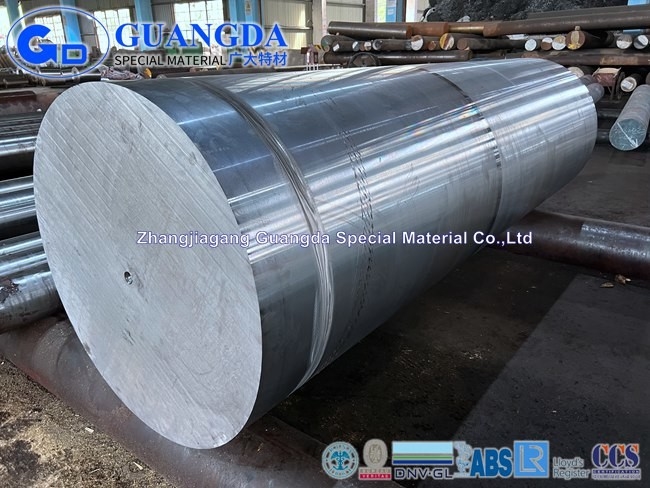

34CrNiMo6 1.6582 forged round bar alloy steel 34CrNiMo6 steel Manufacturer
1.6582/34CrNiMo6 a heat treatable, low alloy steel which contains chromium,molybdenum and nickel as strengthening agents as per BS EN 10083-3:2006. It is known for its good strength,toughness, hardenability and capability of developing high strength in the heat treated condition while retaining good fatigue strength,but it is poor in weldability,usually this steel should be hardened and tempered before application.
Forged Round Bar 34CrNiMo6 1.6582 Product features
| Material | 34CrNiMo6 1.6582 |
| Type | Forged bar ,round ,square, flat, block, shaft etc. |
| Diameter | φ150-1500mm |
| Length | Max 10000mm (10m) |
| Surface | Black, peeled, polishing, bright, sand blast, hair line, etc. |
| Application | Heavy machinery axle,turbine shaft blade, high load of transmission parts, fasteners, crank shafts, gears, as well as heavily loaded parts for motor construction etc. |
| Tensile strength test | DIN EN ISO 6892-1 |
| Impact test | DIN EN ISO 148-1 |
| UT | DIN EN10228 Quality-Class 3 C/c or D/d |
| Grain size | ASTM E112 / EN ISO 643 |
| Applicable standard | EN10250,EN10083,SEW550 etc |
| Certificate | EN 10204 / 3.1 3.2 |
Forged Round Bar 34CrNiMo6 1.6582 Chemical Compostion
| Standard | Steel designation name | Number | C | Si | Mn | P | S | Cr | Mo | Ni |
| EN10250 | 34CrNiMo6 | 1.6582 | 0.30-0.38 | ≤0.40 | 0.50-0.80 | ≤0.035 | ≤0.035 | 1.30-1.70 | 0.15-0.30 | 1.30-1.70 |
Forged Round Bar 34CrNiMo6 1.6582 Mechanical properties
| Mechanical properties in the quenched and tempered condition (continued) Thickness of ruling section tR |
||||||||||||||||||||
| Steel designation |
tR≤160mm | 160＜tR≤330mm | 330＜tR≤660mm2) | |||||||||||||||||
| Standard | Name | Number | Remin N/mm² |
Rmmin N/mm² |
A min % |
KV min J |
Remin N/mm² |
Rmmin N/mm² |
A min % |
KV min J |
Remin N/mm² |
Rmmin N/mm² |
A min % |
KV min J |
||||||
| 1 1) | tr 1) | 1 1) | tr 1) | 1 1) | tr 1) | 1 1) | tr 1) | 1 1) | tr 1) | 1 1) | tr 1) | |||||||||
| EN10250 | 34CrNiMo6 | 1.6582 | 600 | 800 | 13 | 9 | 45 | 22 | 540 | 750 | 14 | 10 | 45 | 22 | 490 | 700 | 15 | 11 | 40 | 20 |
Forged Round Bar 34CrNiMo6 1.6582 Comparison of steel grades
| EN | Number | ISO 683-1:1987 | Germany | United Kingdom | France | Italy | Sweden | Spain |
| 30CrNiMo6 | 1.6582 | (36CrNiMo6) | (34CrNiMo6) | (817M40) | - | - | 2541 | - |
Forged Round Bar 34CrNiMo6 1.6582 Heat treatment
