| Place of Origin | Jiangsu China |
| Brand Name | Guangda |
| Certification | DNV, BV, Rina, ISO, GL, ABS, LR ,CCS ,PED |

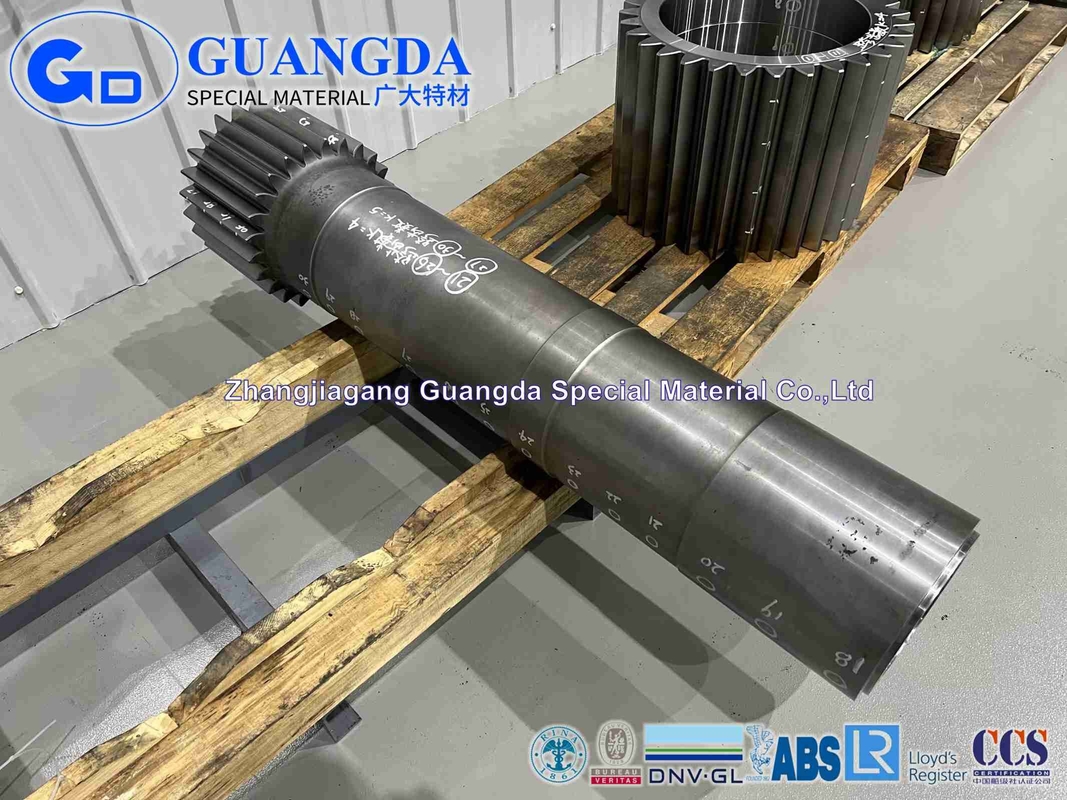

Gear Pinion Shaft Customized Gear Shaft Gear Shaft Manufacturers
A pinion shaft is the main drive member of most gear train assemblies. The shaft transfers the input of a drive shaft or crank to the rest of the gears to produce the work for which the gear train is designed. A pinion shaft can transfer this drive motion to a linear gear assembly or to a right angle bevel gear set, such as a vehicle differential. Pinion shafts and their associated drive gears are typically one-piece assemblies machined from a single piece of steel stock.
Most gear train assemblies transfer a rotational mechanical input into an output of increased or decreased velocity or torque. They also allow for the direction of the input to be adjusted to drive elements at right angles. Most input drives are supplied by a drive shaft or a crank mechanism. Common examples of these inputs include the drive shaft and differential of an automobile and the drive mechanism of a fishing reel. Both take the input from the drive shaft or reel crank and pass the rotational motion to a series of gears via a pinion shaft. The pinion shaft, therefore, forms the first stage of the gear train.
High precision gear hub specification
| Max diameter | 5000mm |
| gear module | 5-40 |
| Annular Capacity | 10000pcs |
High precision gear hub Precision gears types
| |
Planetary Gear Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears |
| |
Internal Gear Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears |
| |
Spur Gear The spur gear, also called a straight-cut gear, is the simplest type of gear available. Straight-sided along the gear wheel’s axis, with straight teeth in line with the axis. Other types of spur gears transmit motion and torque laterally through compatibility with other parallel aligned gears. Such gears are main components in planetary gears. |
| |
Spline Gear Spline gears are either cylindrical or rod-shaped with straight teeth that allow them to transmit motion laterally by fitting inside internal devices or gears. |
| |
Helical Gear Helical gears are fast rotating gears capable of supporting heavy loads efficiently and smoothly. They feature teeth inclined towards the axis of the shaft and positioned like a helix, thus the name. Quieter than many other gears, including spur gears, helical gears are popular with applications that feature both radial loads and thrust loads. |
| |
Double helical gear Double helical gears are a type of helical gear that has two helical faces next to each other with a gap between them. The helix angles on each face are identical but opposing. The use of a twin helical gear set lowers thrust loads and allows for even more tooth overlap and smoother operation. |
Guangda manufacturing for the gears capacity
| Smelting | Smelting capacity 500,000.00 ton/year . With own smeliting line of carbon steel,stainless steel, alloy steel and special steel . |
| Forging | Forging capacity 300,000.00 ton/year . With own professinal forging press machines 5000ton,4500ton,4000ton,3600ton,2000ton,1000ton and ring rolling mill machines and could manufacture the forging blank ourselves. |
| Rough machining | Turning, milling, boring different kinds of the rough machining equipment more than 100 sets |
| Precision machining | With the most advanced and modern equipment of PAMA ,Gleason ,Danobat,Kehren, Nicolas,Pierto carnaghi of precision machining including gear shaping ,gear hobbing, gear grinding etc. |
| Heat treatment line | With own professional equipment for heat treatment for Annealing ,Normalizing ,Tempering ,QT, Isothermal annealing,Stress relief , Nitriding , Carburize ,Case-hardening etc |
| Surface treatment | Advanced coating facilities such as high-pressure cleaning, sand blasting and thermal spraying. Complete surface treatment capability. |
| Inspection | UT,MT, With Gleason gear measuring instrument and Hexagon three coordinate detector |
About Guangda for the gears manufacturing
Guangda is one of the leading gear manufacturers in China .We make various sizes of gears for different applications acoss multiple platforms . we have the experience and resources necessary to meet the demands of your business. You can count on our engineers and quality control teams to make the high-quality, custom gears you need.
We’re committed to exceeding your gear manufacturing technology needs from start to finish. Whether your project requires services such as full design, prototyping, pre-production and production of gears, Gear Motions has the expertise to handle every step of the gear manufacturing process to meet your needs.
All products are manufactured with the most advanced and modern equipment of PAMA,Gleason,Danobat,Kehren,Nicolas,Pierto carnaghi and efficient technical team with an emphasis on cost effective production.Guangda pursues excellence & innovation with tight quality control & the most advanced technology in the industry.
Guangda has deep and long cooperation with NGC ,Voith ,Flender and ZF for supplying the gear box parts . In Chinese market, Guangda wind turbine gear steel ranks first in China for the capacity, quality and market share .And Guangda is the largest supplier to the world's top three customers NGC,ZF and Siemens for the gear box parts.
